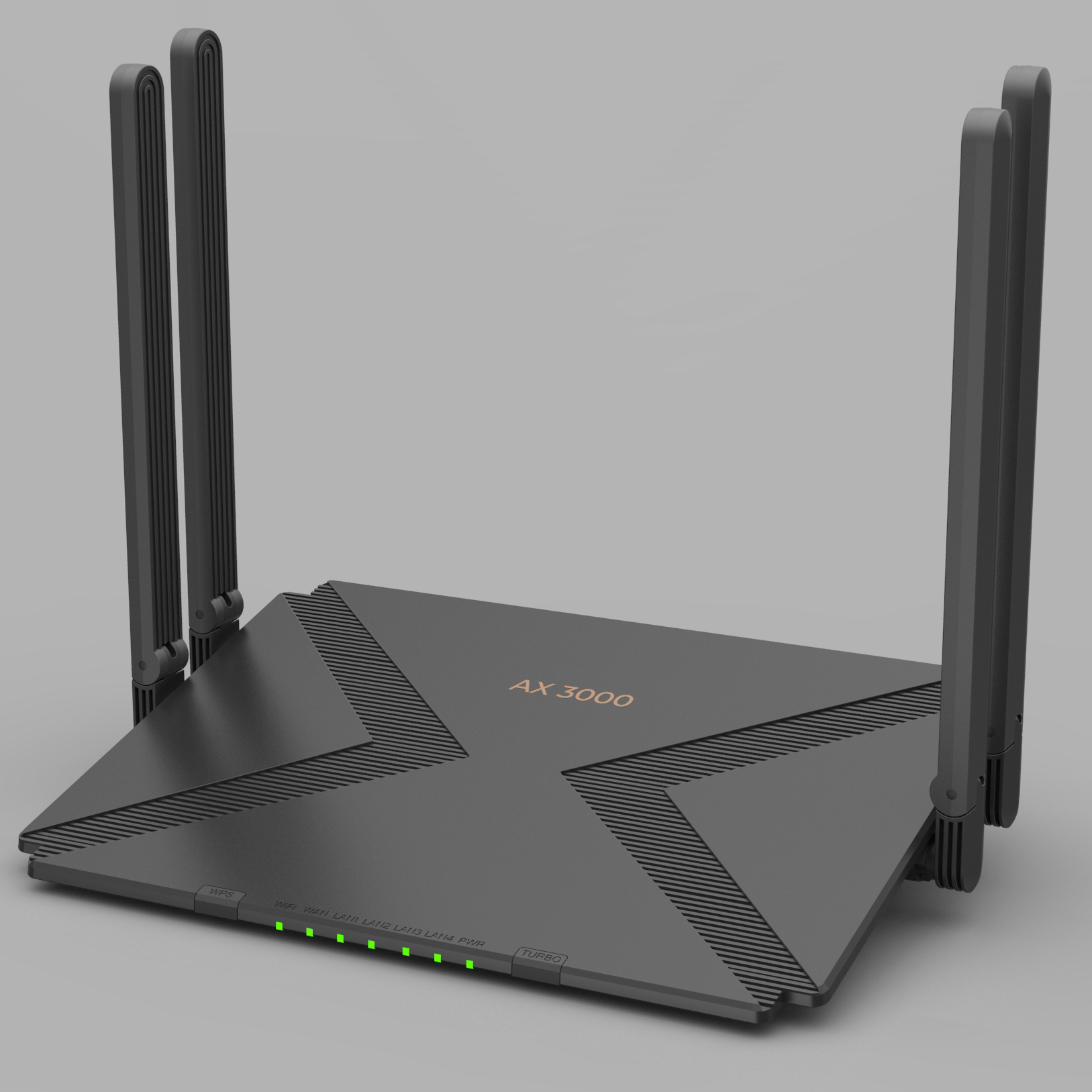

WINSTARS WS-WN536MX3 WiFi 6 AX3000 Dual-Band Super Router
WS-WN536MX3
- Supports 160MHz bandwidth and 1024-QAM for much faster wireless connections.
- Supports MU-MIMO & OFDMA technique to simultaneously communicate with multiple devices in a very effective way.
- Supports TWT (Target Wakeup Time) technology to save power consumption.
- Provides a total networking speed of about 2975Mbps with 2402Mbps@5GHz and 573Mbps@2.4GHz.
- Features four 5dBi patented antennas that are powerful, omni-directional, foldable and fitting in smaller box.
- Provides 1 x Gigabit WAN + 4 x Gigabit LAN (1000Mbpjs) for high-speed wired Internet.
- Supports 1 x USB3.0 port for Samba.
- Protects network security with up to WPA2/WPA3-PSK MIX.
- Support IPV4 / IPV6.
- Sets up in minutes with the App or Web UI, easily manage WiFi settings and monitor data usage.
WINSTARS WS-WN536MX3 WiFi 6 AX3000 Dual-Band Super Router
WINSTARS WS-WN536MX3 adopts Wi-Fi 6 (802.11ax) technology for faster speeds, greater capacity and reduced network congestion compared to the previous generation. It achieves a total networking speed of about 2975Mbps — 2402Mbps on the 5GHz band and 573Mbps on the 2.4GHz band, which is super network speed that suffice almost any data-heavy activities including video conference calls, 8K movie watching, online gaming, etc.
Dual-Core CPU
128MB (1Gb)
256MB (2Gb)
1 x 10/100/1000Mbps WAN port
4 x 10/100/1000Mbps WAN port
1 x USB3.0 Samba
1 x WPS
1 x Reset
1 x ON/OFF
1 x Turbo
2 x 5dBi 2.4GHz antennas
2 x 5dBi 5GHz antennas
Omni-Directional, foldable antennas
1 x WAN
1 x WiFi
1 x WAN
4 x LAN
1 x Power
input:100-240 Va.c. 50/60Hz
DC 12V/1A
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
802.11k/v
5GHz and 2.4GHz
5GHz: 2402 Mbps
2.4GHz: 573 Mbps
Open
WPA2-PSK
WPA2/WPA3-PSK MIX
Coverage
4x5dBi Omni Directional Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
Dual-Band
Allocate devices to different bands for optimal performance
DFS Access an extra band to reduce congestion
2X2 Streams
Connect your devices to more bandwidth
5GHz:
11n HT20_MCS0: -91dBm,11N HT20_MCS7:-71dBm
11n HT40_MCS0: -88dBm,11N HT40_MCS7:-68dBm
11ac VHT20_MCS0: -90dBm, 11ac VHT20_MCS8:-67dBm
11ac VHT40_MCS0: -87dBm, 11ac VHT40_MCS9:-62dBm
11ac VHT80_MCS0: -84dBm, 11ac VHT80_MCS9:-59dBm
11ax HE20_MCS0: -95dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0: -93dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0: -91dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0: -89dBm, 11ax HE160_MCS11:-55dB
2.4G:
11n HT20_MCS0: -89dBm,11N HT20_MCS7:-70
11n HT40_MCS0: -86dBm,11N HT40_MCS7:-71
11ax HE20_MCS0: -94dBm, 11ax HE20_MCS11:-65dBm
11ax HE40_MCS0: -92dBm, 11ax HE40_MCS11:-62dBm
Router; Extender; AP
Dynamic IP
Static IP
PPPoE
L2TP
Cable or DSL Modem (if needed)
Subscription with an internet service provider for internet access
Wireless Backhaul
Ethernet Backhaul
Address Reservation
DHCP Client List
Server
IPV6 & IPV4
1× 5 GHz Guest Network
Local Web Management
Cloud Management with APP (iOS9.0 or later, Android 4.4 or later)
Webpage (Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser)
SPI Firewall
Access Control
IP & MAC Binding
Web Site Blocker
DDoS Attack Prevention
l2tp
WIFI TIME schedule
QoS by Device
Auto Firmware Upgrade
OTA Firmware Upgrade
DDNS
Port Forwarding
DMZ
UPnP
VLAN
NO-IP
Oray
Further software upgrade for feature availability may be required
ABS Plastic
Operation temperature: 0ºC~40ºC
Storage temperature: -10~70℃
Operation RH (relative humidity): 10%~90%,noncondensing
Storage RH: 10%~90%,noncondensing
1 x Wireless Router
1 x Power Adapter
1 x RJ45 Cable
1 x Quick Start Guide
