WINSTARS AX5400M WiFi 6E PCIe Network Card, Tri-Band AX210 Wireless Adapter with Bluetooth 5.3, MU-MIMO, WPA3, OFDMA, Low-Profile Bracket, Heat Sink, for Windows 10/11 PC

< >
  • WINSTARS AX5400M WiFi 6E PCIe Network Card, Tri-Band AX210 Wireless Adapter with Bluetooth 5.3, MU-MIMO, WPA3, OFDMA, Low-Profile Bracket, Heat Sink, for Windows 10/11 PC

  • MODEL

    WS-WN675X3

  • FEATURES

    • The latest Wi-Fi 6E AX5400 standard gives you incredible speed and connectivity.
    • Tri-Band Speed up to 2.4GHz 574Mbps, 5GHz 2400Mbps, 6GHz 2400Mbps.
    • Support latest Bluetooth 5.3 with longer transmission distance and better stability
    • Support 20MHz & 40MHz & 80MHz & 160MHz bandwidth transmission.
    • The Wi-Fi 6E MU-MIMO and OFDMA techniques have greatly improved the device efficiency and performance.
    • Security: WPA2/WPA3, WPA2-PSK
    • 2 x 5dBi External WiFi 6E Tri-Band Antennas.

Upgrade to Next-Gen WiFi 6E: Comes with a greater capacity and improved performance, this WiFi 6E network card supports the latest 802.11ax technology, such as OFDMA, MU-MIMO, 1024QAM, Target Wake Time(TWT). It delivers a high-speed data rate even in dense or congested environments and gives you an incredibly fast gaming experience with ultra-low latency.

Lag-Free Connection: Intel AX210 chipset extends WiFi into 6GHz band, updating your wifi to tri-band with maximum speeds up to 574Mbps on 2.4GHz, 2400Mbps on 5Ghz, 2400Mbps on 6Ghz. 2.4GHz for the long range transmission, 5GHz for gaming and 4K streaming, while 6GHz is ideal for ultra-smooth and real-time gaming or an immersive VR experience.

Bluetooth 5.3 & WPA3 Security: The newest BT5.3 provides a powerful wireless data connection between your computer and Bluetooth enabled devices, with 2x faster transmission speeds, 4x greater range. In addition, advanced WPA3 security protocol greatly protects the network from hackers and malware, letting you relax with a peace of mind and just enjoy the high-speed WiFi.

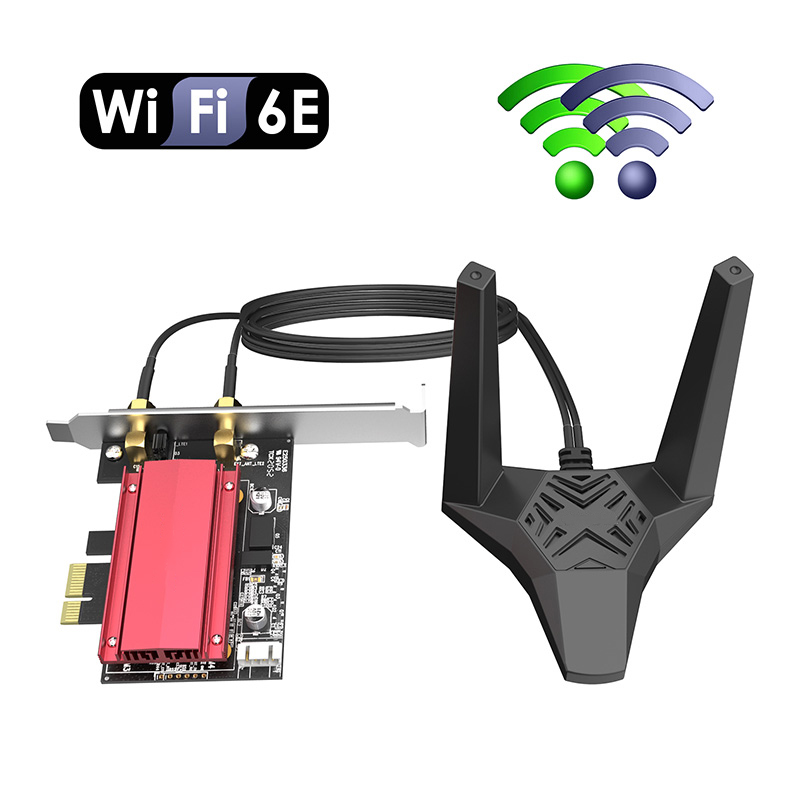

High Gain Antennas & Magnetized Base: Two external 5dBi antennas ensure strong signal reception and transmission, greatly increasing network coverage for a smoother online experience. With a magnetized base and 3.6ft RF cable, you can place it anywhere—your desktop or the computer chassis, to get optimal wireless signal. Easily install with the standard or low profile bracket.

Compatiblity & Warranty: Compatible with Windows 10/11, Linux for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots( Not for PCI slot). We provide 12-month worry free warranty(extra 6 months for registered members) and life-long technical support, just feel free to contact us if you have any problem.

Hardware
Ports PCI-E X1/X4/X8/X16
LED 1×Link
Chipset AX210
Environmental
Operating Temperature 0℃~40℃
Storage Temperature -10~70℃
Relative Humidity(Operational) 10%~90%,noncondensing
Relative Humidity(Storage) 10%~90%,noncondensing
Wireless
Standard IEEE 802.11b/g/n/ac/ax
Frequency band 2.4GHz, 5GHz, 6GHz
Speed 5G:2402Mbps
6G:2402Mbps
2.4G:573Mbps
Wireless Security WPA2/WPA3, WPA2-PSK encryption
Antennas 2×5dBi Tri-Band Antennas(WS-WN675X3 )
System Linux,Windows 10/11 64Bit
